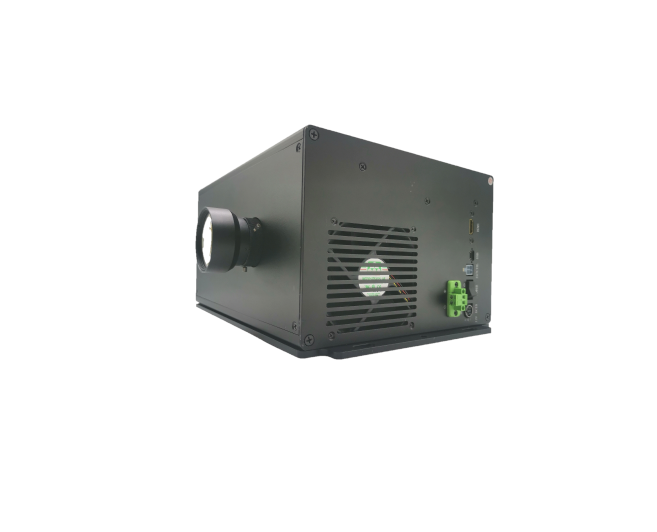

4K HD UV 405nm/385nm DLP Projector SM12

Features

• Excellent optical performance.

• Instant LED on/off.

• Dedicated for UV Lithography application.

• High resolution.

• Easy installation to multiple unit integration.

Specification

• High Resolution :3840 x 2160 (XPR)

• DLP660TE DMD chip

• LED Wavelength: 405nm/385nm

• Light power: 3W (light-out)@405nm

• Video Interface: HDMI

• Configuration light Engine system, including UV LED module,Main board, Thermal Solution

• Power 12V DC/7A power input

• Control Interface:USB

• Common software platform : SM9/SM11/SM12

• Optional projector lens

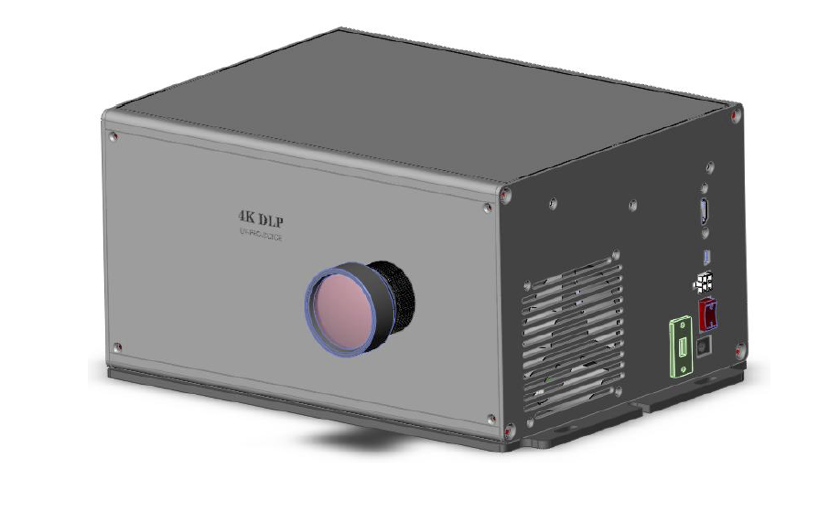

4k SM12.jpg

Model

Resolution

Image@Distance

Distortion

WaveLegngth

X

28-35um

115.2*64.8@158

0.10%

405/385

M

38-45um

153.6*86.4@228

0.10%

405/385

L

48-55um

192*108@295

0.10%

405/385

XL

70-85um

288*162@470

0.05%

405/385
