USB2.0 Camera Module

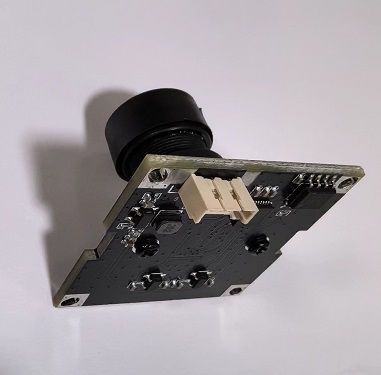

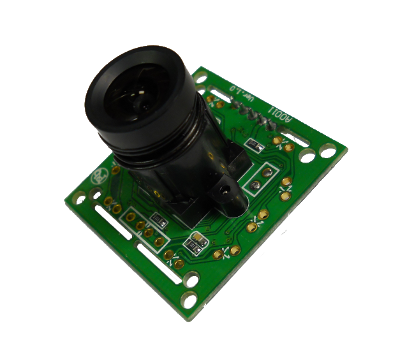

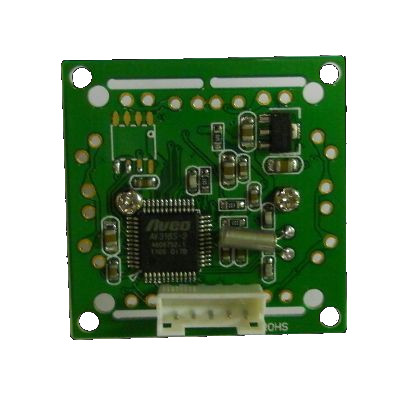

This OV7725 USB CMOS board camera module by SICUBE is ideal for many applications such as security systems, portable video systems, video phones, industrial machine monitoring and toys. It uses high quality OmniVision image sensors. Although this camera is not designed as a consumer item, it remains a popular choice for equipment manufacturers, experimenters and hobbyists.

Key Features:

-CMOS VGA sensor OV7725 for high quality images and low power consumption

-Hi-speed USB 2.0 interface for high resolution PC camera interface

-Active pixel technology for sharp images and accurate color reproduction

-Superior low-light performance - ideal for any lighting condition

-Exceptionally small outline and thin profile for embedded applications

-High frame rate - will deliver 30 FPS in VGA

-High quality lens with IR Cut Filter for true-to-life undistorted color images

-Standard USB connector

-UVC for use in Linux, Windows XP SP2 or above, Android

-WinCE system driver and SDK support

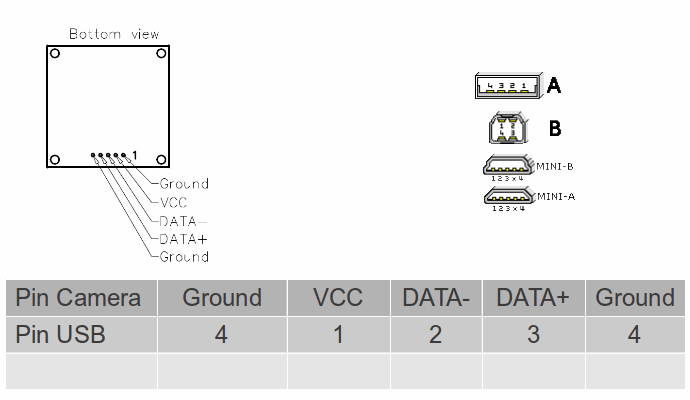

SB101C Camera Interface Definition:


The 720P HD USB CMOS camera module (model:SB101E ) is ideal for many applications like security systems, portable video system,video phones, industrial machine monitoring and toys. It use high quality image sensors. It use MJPEG compression technology to reach high frame rate video output. The HD USB camera module is designed for consumer items ,equipment manufacturers, experimenters and hobbyists. Applications Car and ship control, electrical equipment,oil field equipment,industrial equipment, remote site monitoring, environmental monitoring, car tracking system etc.



Features :

 720P CMOS sensor for high quality image and low power consumption.

 High speed USB interface for high resolution PC camera interface.

 Active pixel technology for sharp image and accurate color reproduction.

 Superior low light performance – ideal for any lighting condition.

 Advanced MJPEG compression technology l

Super small outline and thin profile for embedded applications.

 High frame rate.

 YUV and M-JPEG output

 High quality and changeable lens for true to life undistorted color image.

Bus powered with low power consumption – ideal for portable equipment.

 Camera with UVC.

 Optional board lens:3.6mm,2.1mm,1.5mm fisheye lens with 650nm/850nm IR filter



Parameters

 Image Sensor 1/4.5” Color CMOS image sensor  GC1084

Effective Pixels 1280 (H) x 720 (V) pixels

Signal Output Serial data for USB standard compliant

Output format YUV/M-JPEG PNG/BMP/JPG

Frame Rate MJPEG 30 fps @ 1280 x 720

 Operating System Linux 2.6.26 or above, Windows XP SP2 or above, Android, Windows CE

High quality lens for true to life undistorted color image

 Superior low light performance – ideal for any lighting condition.

Operating temperature -30℃ - 65℃

Power Consumption 50mA

Dimensions 32mm*32mm

USB Interface : mini 4pins (1.25mm)

Drawing:

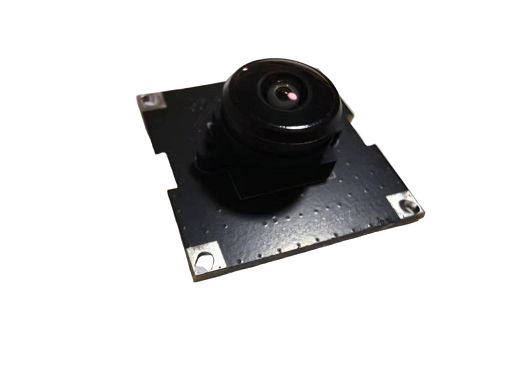

we also offer USB camera module with fisheye lens for big FOV application

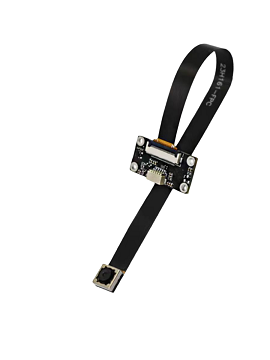

we also offer 16MP USB Flexible FPC Camera Modules for Robots and Consumer Electronics


Description:

A flexible FPC USB camera module is a compact imaging device that incorporates a camera and a flexible printed circuit (FPC) board. It is designed to provide high-quality image capture and is characterized by its flexibility and adaptability for integration into various devices and systems.USB flexible FPC camera modules offer several advantages, including their ability to conform to curved surfaces and tight spaces, their compact form factor, and their design flexibility.

The 12MP SB113C USB FPC camera module provides high-resolution imaging in diverse environments and find applications in industries such as automotive, healthcare, consumer electronics, and more.

 Specification

Model

SB113C

Sensor

LIHAPPE8

Sensor Size

1/2.8 inch

Max. Resolution

4608X3456

Compression format

MJPEG / YUY2(YUYV)

FPSYUY2/ MJPG: 640X480(30fps)
MJPG:1280X720(30fps)
MJPG:1920X1080(30fps)
MJPG:2048X1536(30fps)
MJPG:2304X1728(30fps)
MJPG:2592X1944(30fps)
MJPG:3264X2448(30fps)
MJPG:3840X2160(30fps)
MJPG:4160X3120(10fps)
MJPG:4608*3456(10fps)

Pixel Size

1.12µm x 1.12µm

Max Dynamic Range

83db

Shutter Type

Electronic Rolling Shutter / Frame Exposure

Connecting Port type

USB2.0 High Speed

 Free Driver Protocol

USB Video Class(UVC)

AEC

Support

AWB

Support

AGC

Support

Adjustable parameters

Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure

Lens Parameter

88 degree -FOV

Power Supply

USB BUS POWER5P-1.0mm socket

Operating Voltage

DC5V

Working Current

150mA~240mA

Working temperature

-10~70℃

Storage temperature

-20~85℃

Board size

187mmx30mmx5.4mm

Cable

Standard 50CM / optional 1.8M ,2.2M

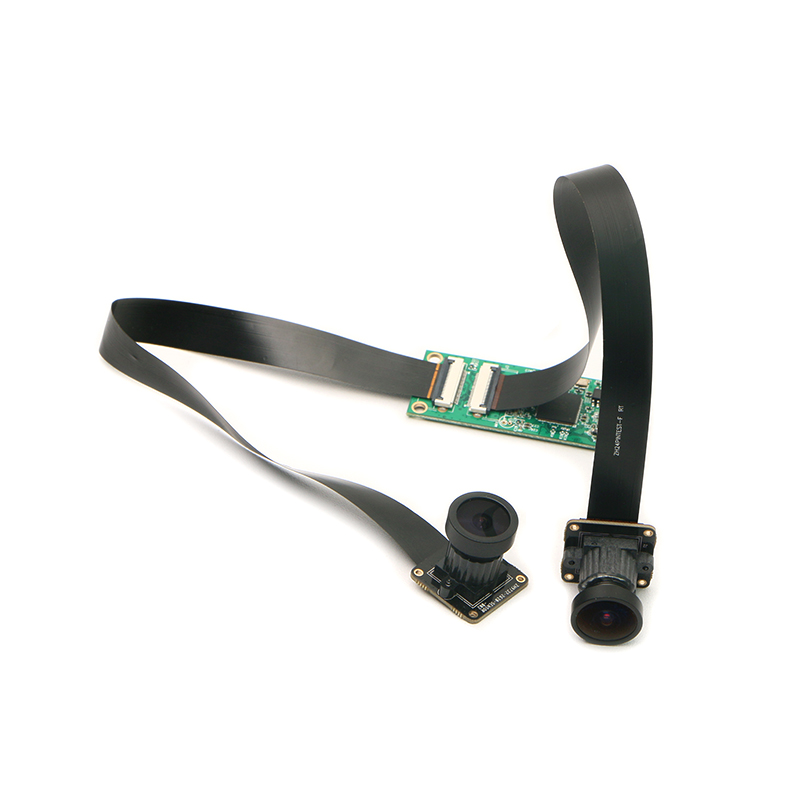

We also offer dual lens USB camera modules,welcome for inquiry .
